alexanderWasaki · Post by **alexanderWasaki** » Sat Sep 11, 2004 4:07 pm

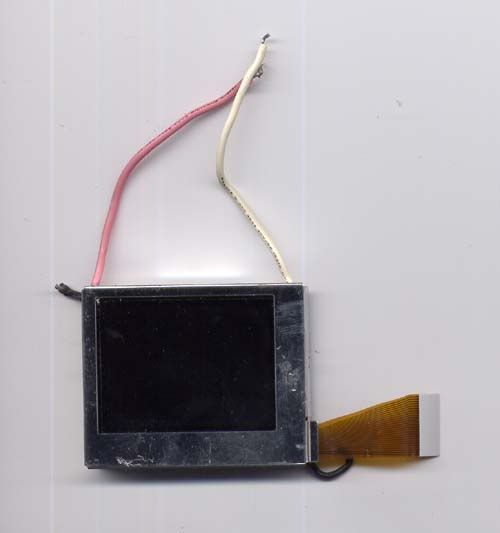

i plan to make my supernintendo somewhat portable by putting a screen into the console and maybe even shoetening the controller so i can run it all portably here are the images

which wires do i need to use or do i need yo use all of them?

Post by **Sparkfist** » Sat Sep 11, 2004 6:43 pm

Well white and pink are the power for the screen. The ribbion cable is what you need to send in like compaosite or rgb. If you have the manual it shoudl tell you otherwise you're going to have to follow traces or just check every lead to see whats what.

stereth · Post by **stereth** » Sun Sep 12, 2004 1:21 am

You may be in trouble. I doubt that ribbon cable has connections for analog video. And those power wires look like cold cathode backlight power, which needs 800V or more. Where is the screen from?

Edit: Black is ground, probably connected to the metal case. Make sure you ground that to your system.

alexanderWasaki · Post by **alexanderWasaki** » Sun Sep 12, 2004 1:35 pm

its not a big screen i got it from a 5 mgpxl camera my friend gave me hebroke all the buttons on it but the screen still works

Post by **Sparkfist** » Sun Sep 12, 2004 2:15 pm

Whoa, your saying this thing is like 2 or less inches? Unless its 2.5 to 5 inches its of little use in portablizing. Look into getting a handheld tv or PSOne screen, they have compatable voltages.
