Wooo update!!
Update time.
I redid the controller pads to make them thinner by 1/8". Essentially I put the resistors, switchs, and traces on the same side. Next I wired up the New DC-DC convertors to replace the linear voltage regulators I was previously using.
The DC-DC convertors gave me a 200mA reduction in total amps consumed by my NES and Screen (from 650mA to 450mA). Total estimated battery life of 5.5 hours.

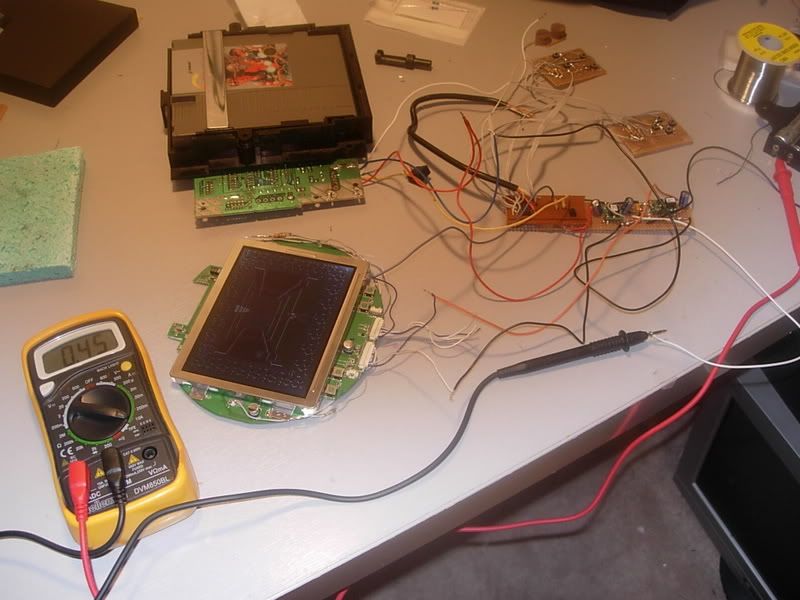

contra woo! If you look at the multimeter you can see the .45A reading.

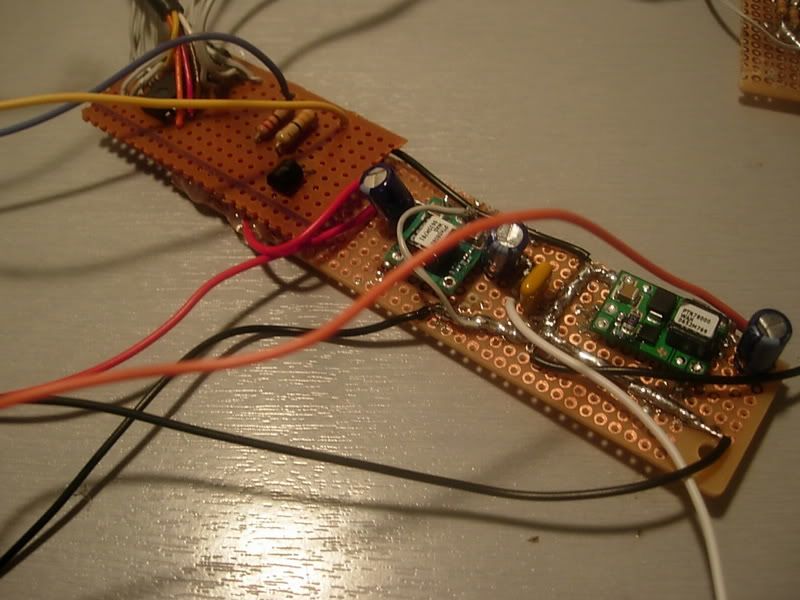

Close up of the New DC-DC components. Those where a pain to hook up but i think an increase of 1.5 hours is worth it
.
My camera ran out of batteries before I could take a shot of the controller boards so I will do so in the next update.
Tomorrow the goal is to get this NESp done!
I redid the controller pads to make them thinner by 1/8". Essentially I put the resistors, switchs, and traces on the same side. Next I wired up the New DC-DC convertors to replace the linear voltage regulators I was previously using.
The DC-DC convertors gave me a 200mA reduction in total amps consumed by my NES and Screen (from 650mA to 450mA). Total estimated battery life of 5.5 hours.
contra woo! If you look at the multimeter you can see the .45A reading.
Close up of the New DC-DC components. Those where a pain to hook up but i think an increase of 1.5 hours is worth it
.My camera ran out of batteries before I could take a shot of the controller boards so I will do so in the next update.
Tomorrow the goal is to get this NESp done!
The wood master
"I was under the impression Mac owners don't actually USE their machines, they just parade them around trying to evangelize the masses."
"I was under the impression Mac owners don't actually USE their machines, they just parade them around trying to evangelize the masses."
-
Rekarp
- Portablizer Extraordinaire
- Posts: 2163
- Joined: Thu Dec 28, 2006 1:52 am
- PSN Username: Lnghrn_
- Steam ID: rekarp
- Location: Austin, Tx
- Contact:
Complete

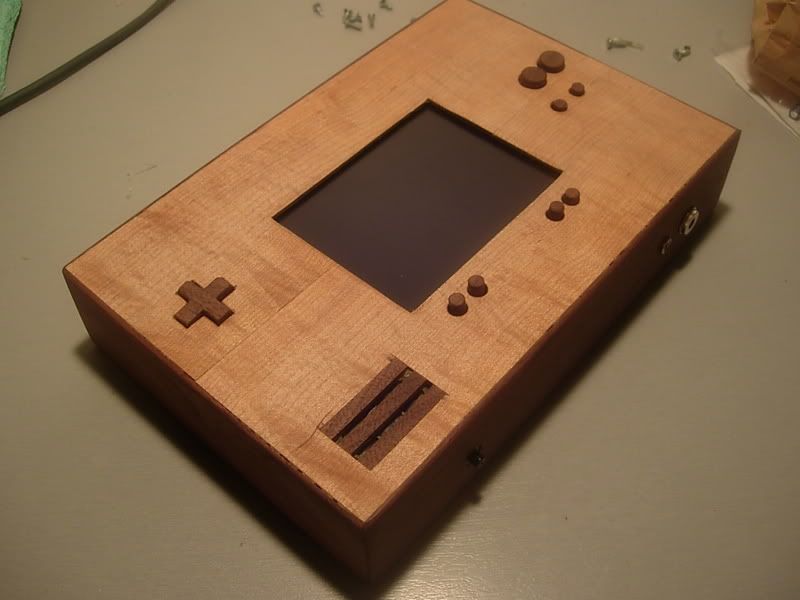

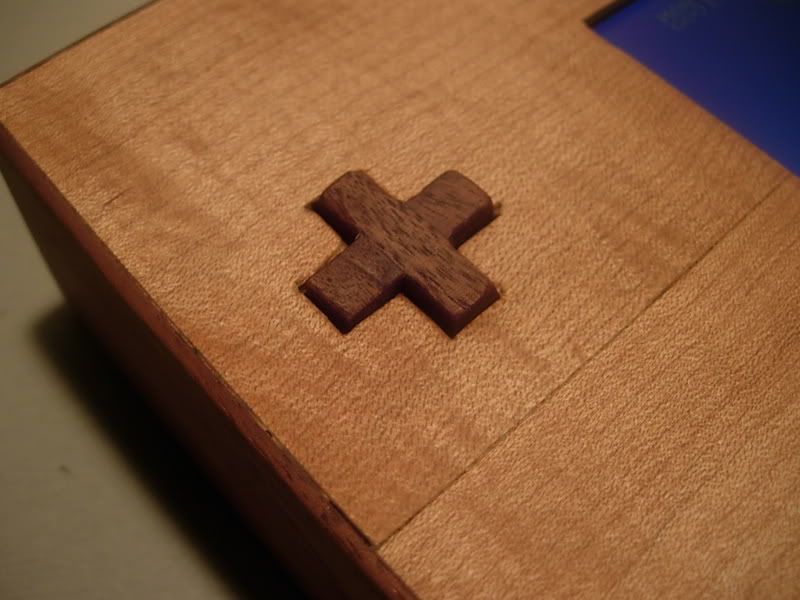

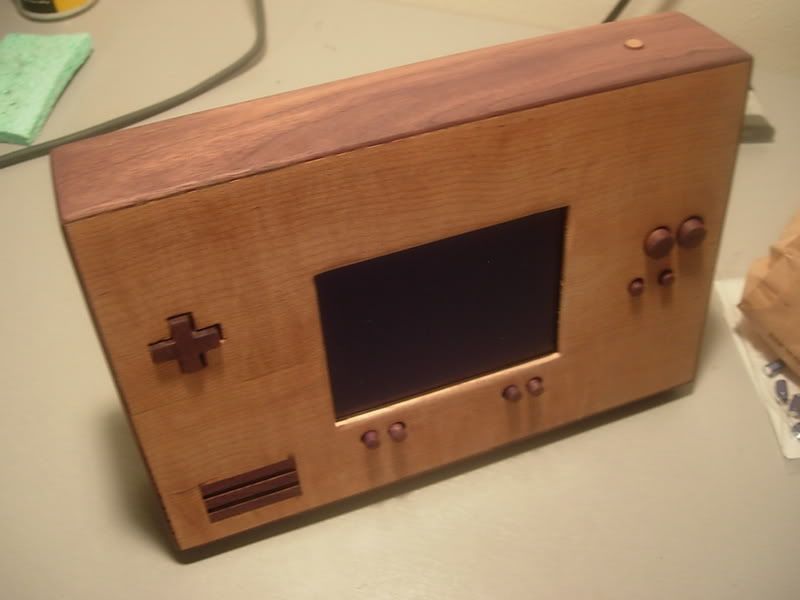

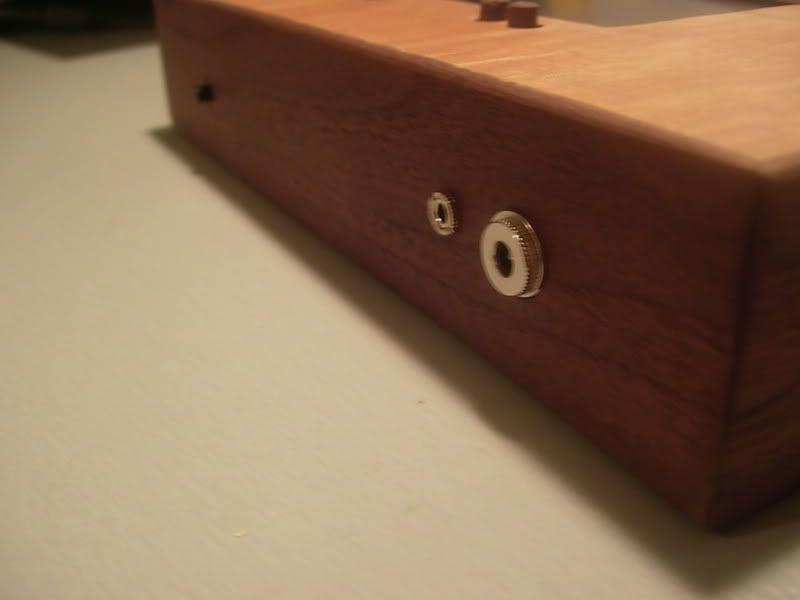

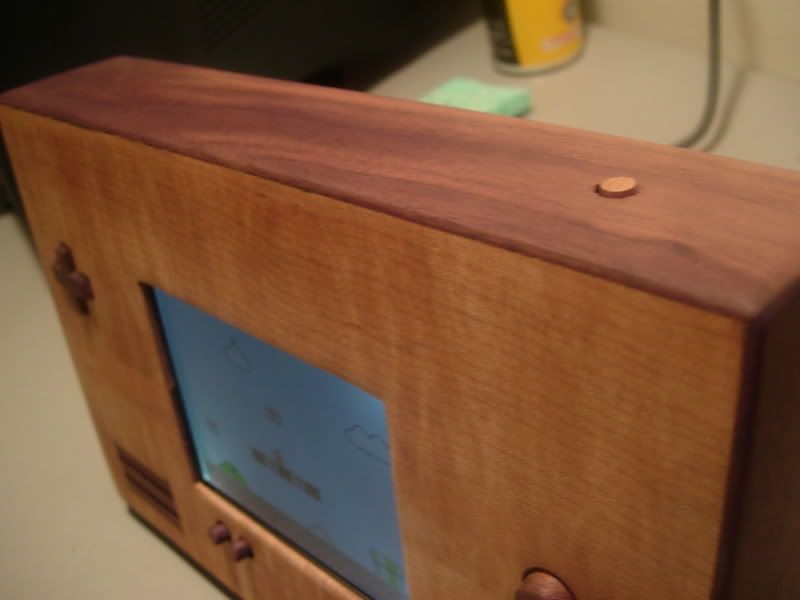

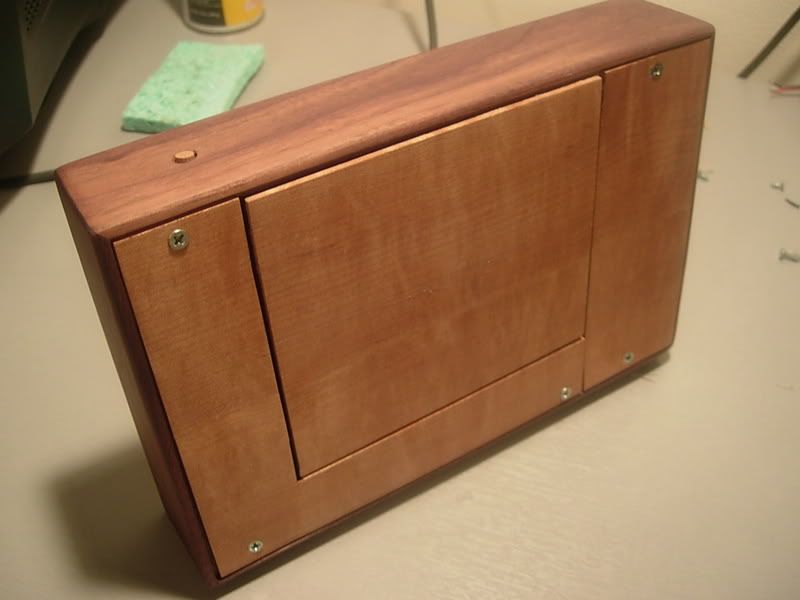

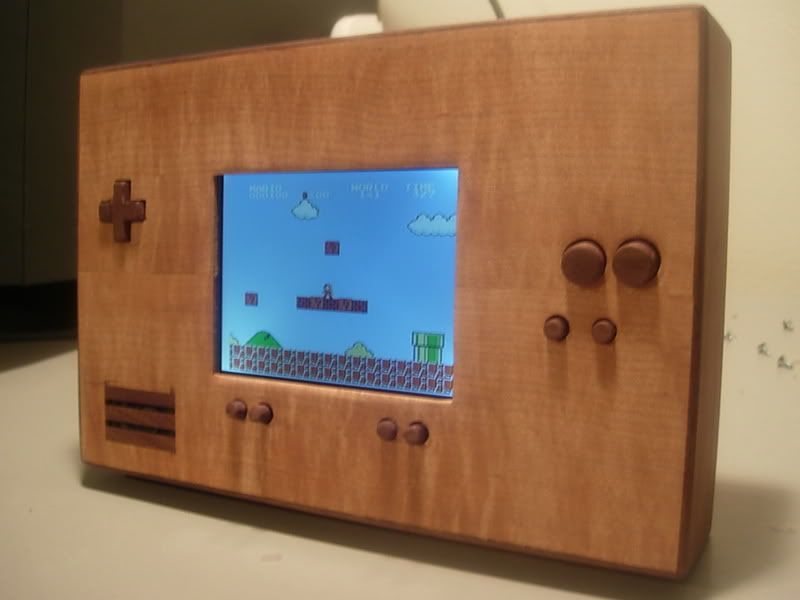

Well after a long night the NES is finally completed! Here are the final pictures.
