Help on Battery

LethalMeatball · Post by **LethalMeatball** » Mon Aug 08, 2005 4:35 pm

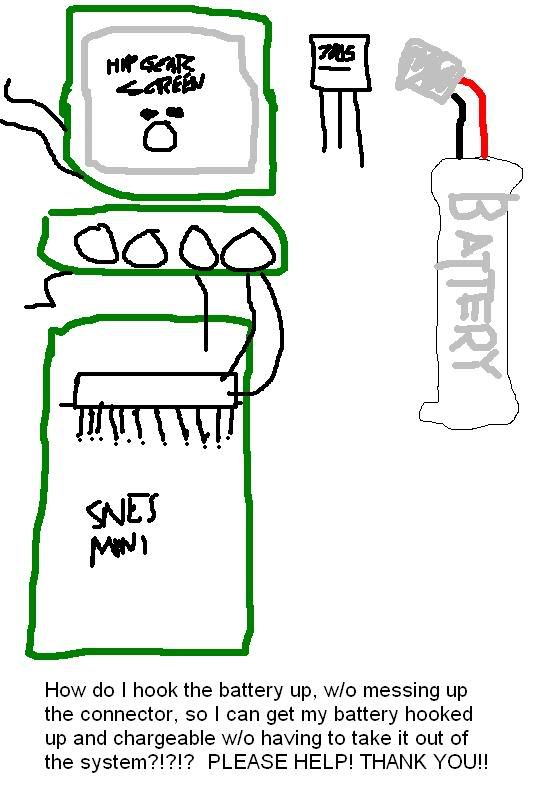

I only have to hook the hipgear to the 7805, and the battery, and then im done, so I NEED HELP! Thanks.

Post by **Sparkfist** » Mon Aug 08, 2005 4:43 pm

Ok you'll have to put power from the battery to the screen and console. And it cant be like the console and then off the console to the screenn (or vice versa). On the Hip Screen you need to connect the input voltage to the output voltage pin of the 7808 on the control board, the SNES you connect the positive to the input voltage pin. As for the ground connect that to the center pin (its always the center pin). That should get the power going.

Enjoy.

shmagoogin77 · Post by **shmagoogin77** » Mon Aug 08, 2005 5:13 pm

buy this:
http://www.radioshack.com/product.asp?c ... Fid=23-445

use either this:

or this:

LethalMeatball · Post by **LethalMeatball** » Mon Aug 08, 2005 5:39 pm

so according to shmagoogin77, I would need to have the battery still detachable?

Thanks for the help guys.

Turbo Tax 1.0 · Post by **Turbo Tax 1.0** » Mon Aug 08, 2005 5:45 pm

no you can have a built in charger just use a DPDT switch like this
DPDT

and this thread may also help charging thread[/code]

Post by **Sparkfist** » Mon Aug 08, 2005 8:36 pm

First thing first. The SNES has a 7805 on the board, use that. The Hip Screen also has a 7808 on the control board, use that. Now follow the instruction I gave in the first post I made here and it will work.

You cant use a single 7805 as they dont usually aloue enough currect to go through to power that much.

Use the hardware you have and you'll be fine. Also to be sure the batteries your using are rated at 7.2v, right?

Metroid fan · Post by **Metroid fan** » Mon Aug 08, 2005 10:21 pm

Sorry this is kind of off topic but can someone link me too the circut that can charge and play at the same time? Thanks

LethalMeatball · Post by **LethalMeatball** » Tue Aug 09, 2005 1:49 am

ya its a 7.2V 3000mAh Ni-MH battery

Turbo Tax 1.0 · Post by **Turbo Tax 1.0** » Tue Aug 09, 2005 8:43 am

what i posted up top will help you with the charging circuit make sure to look cause there is some good stuff

LethalMeatball · Post by **LethalMeatball** » Tue Aug 09, 2005 2:14 pm

will do! Thanks turbo tax

bioniclebert · Post by **bioniclebert** » Tue Aug 09, 2005 5:29 pm

I have one of those batteries also, It should work great for you. I thought that was a monster battery when i first saw it.
Beware, do not even touch the two connections together for 2 seconds with an alligator clip by mistake. I did it, and It burned severly in 2 seconds. It really packs a punch, and lasts long.

good luck!

shmagoogin77 · Post by **shmagoogin77** » Tue Aug 09, 2005 5:38 pm

i have the 9.6v version cause it smaller and less expensive
