Bacteria - Ipaq 3600 PDA resurrected, improved! *DONE*

Show off your completed projects, announce your hacking progress, or discuss upcoming events.

Moderator: Moderators

Post Reply
bacteria
Portablizer Extraordinaire
Posts: 3984
Joined: Fri Apr 20, 2007 12:14 am
Location: Hampshire, UK
Contact:

Bacteria - Ipaq 3600 PDA resurrected, improved! *DONE*

Post by bacteria »

Project completed, details of what it is all about, why I did it and how I did it is in the "Handheld Hacking" forum, ...here...


I like the appearance of this PDA!

Improvements vs original Ipaq 3660 PDA:

* 7x its original battery life between charges (continuous, about 10.5 hours on high bright screen).
* Old one was dead, battery died years ago. Recycled it rather than binning it.
* Dual power; will recharge batteries when needed.
* Better direction control.
* A size better for adult hands!
* Built-in USB connection to PC.
MrTroy
Posts: 139
Joined: Fri Nov 03, 2006 2:11 pm
360 GamerTag: Kizler

Post by MrTroy »

I've been watching this for a while. Congrads man, it looks great.

You have any to scale pictures. I'm curious how thick the actual case is now.
benol
Posts: 1371
Joined: Thu Aug 31, 2006 1:53 pm
Location: In ur fourmz, postin in ur thredz!
Contact:

Post by benol »

You never cease to amaze. Keep up the awesome work!!!
PM me for DS friend codes. PLEASE!
DOLGAT IS REAL!!!!

Help My MyMiniCity, plzkthxbai
bacteria
Portablizer Extraordinaire
Posts: 3984
Joined: Fri Apr 20, 2007 12:14 am
Location: Hampshire, UK
Contact:

Post by bacteria »

Thanks guys, appreciated. I will post more pics on the main thread; and a comparison pic too in the next day or two.

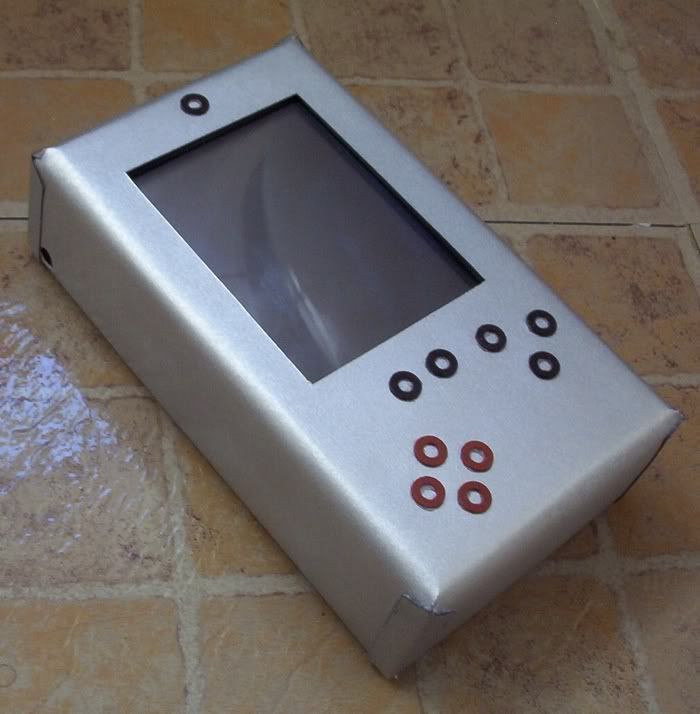

Alternative way to make a case - hope you like it! I think it has a very sleek look.
Skyone
Moderator
Posts: 6390
Joined: Tue Nov 29, 2005 8:35 pm
Location: it is a mystery
Contact:

Post by Skyone »

Very nice. I finally understand how those buttons work, I was so confused before. :P
Life of Brian
Moderator
Posts: 2867
Joined: Wed Aug 03, 2005 5:55 pm
Location: Oklahoma
Contact:

Post by Life of Brian »

Well done! I give you an A+ :D
dragonhead wrote:sweet. ive spent a third of my life on benheck!
HotDog-Cart
Portablizer
Posts: 3804
Joined: Sat Jul 16, 2005 12:07 pm
PSN Username: Lythinca
Steam ID: scythe_king
Location: Your IP Address, Connecting...
Contact:

Post by HotDog-Cart »

How is this even done? Those don't even look like buttons. They look like washers put onto the metal case. :S Im confused.
Valium
Posts: 1412
Joined: Wed Jun 06, 2007 12:08 pm
Location: Nova Scotia, I'm over from kurt

Post by Valium »

They just show where the tact switches are, they aren't buttons.
Helpplease
Posts: 43
Joined: Sun Nov 18, 2007 11:56 am
Location: In my room, building stuff. And in Sweden.

Post by Helpplease »

Awesome! Really like the case, everything you make looks so damn good!
bacteria
Portablizer Extraordinaire
Posts: 3984
Joined: Fri Apr 20, 2007 12:14 am
Location: Hampshire, UK
Contact:

Post by bacteria »

HotDog-Cart - they were washers (PC mobo washers), press on them and contact made with tact switches underneath. Problem was they worked but needed a harder press than I wanted, so updated them, pics updated on my thread to show how...

Thanks Helpplease and Life of Brian!

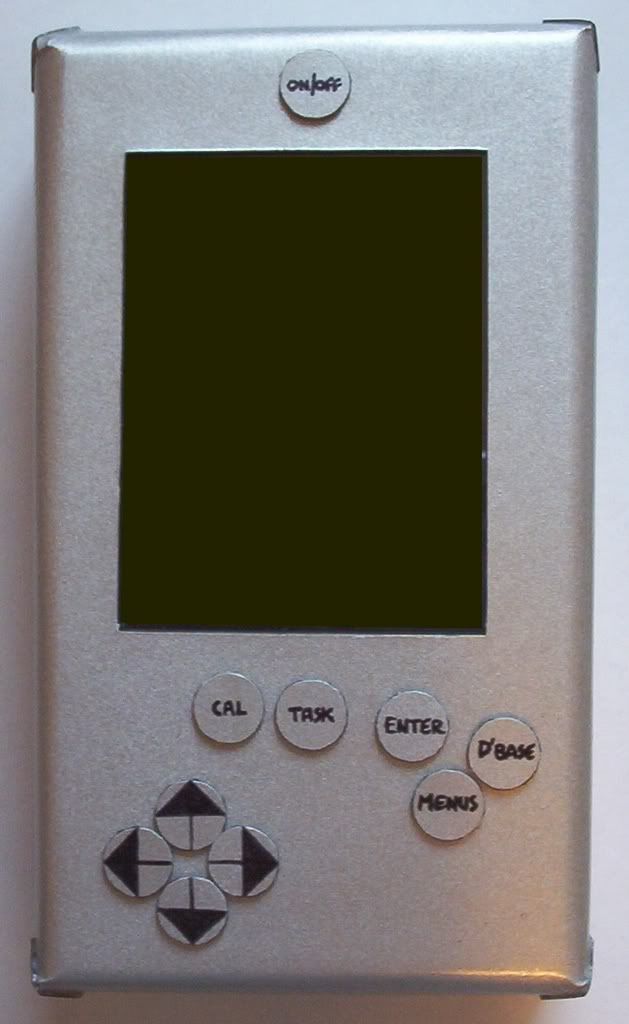

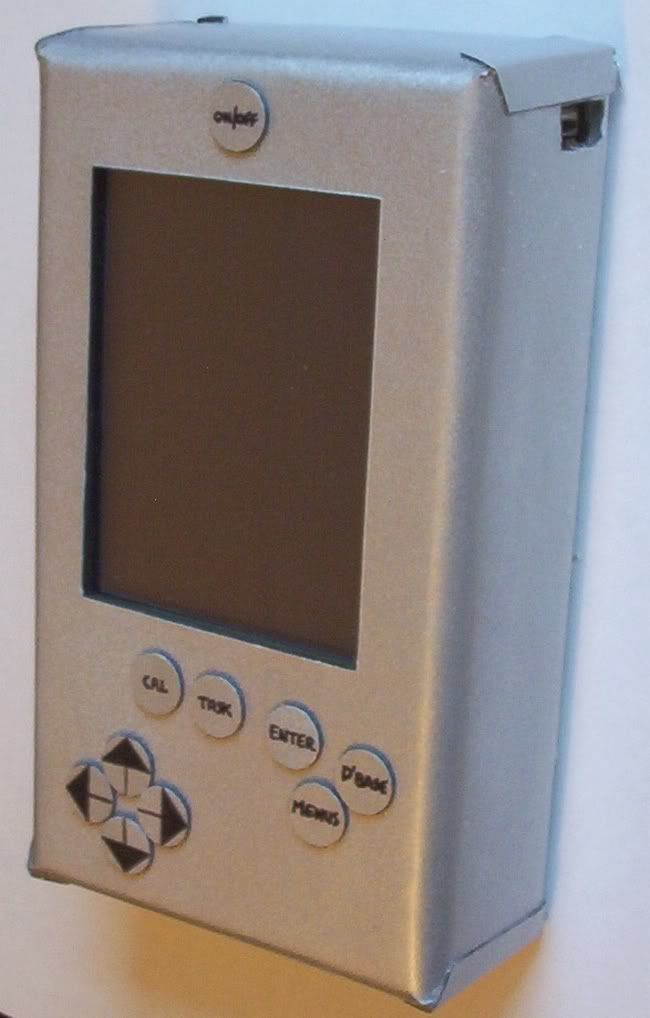

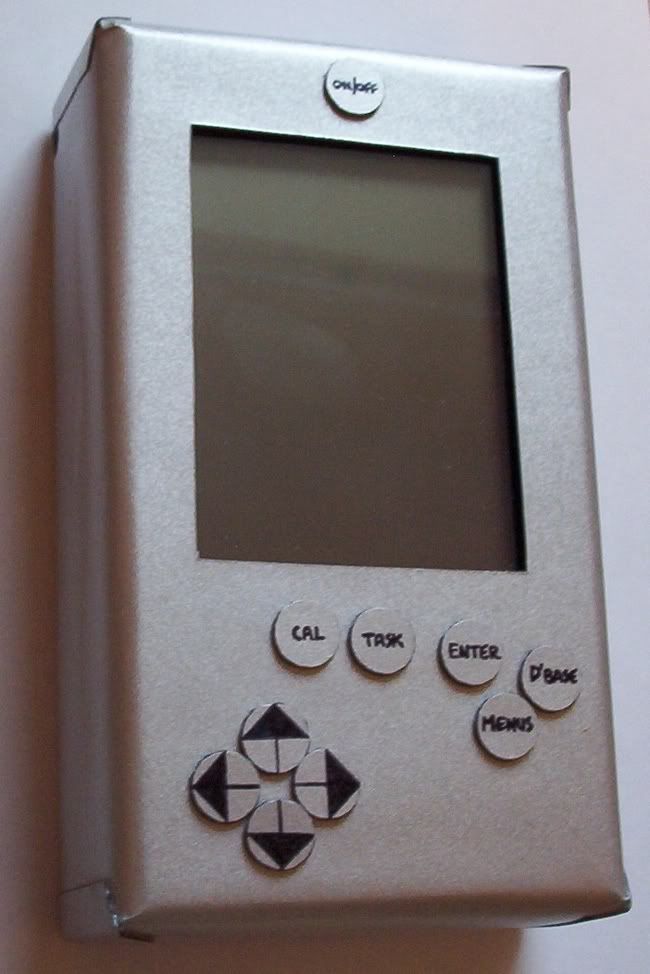

New (final) pics:





I could possibly have used my printer to put the working on the buttons, but I doubted the ink would set on the spray paint, so used a CD marker pen and did it by hand.

I will put pics of system running on the main thread (HandHeld Hacking forum) later, I need to varnish the button tops and let them dry before I handle them too much.
bacteria
Portablizer Extraordinaire
Posts: 3984
Joined: Fri Apr 20, 2007 12:14 am
Location: Hampshire, UK
Contact:

Post by bacteria »

I uploaded these to the main thread, thought I would copy them here too.

Two vids for you:

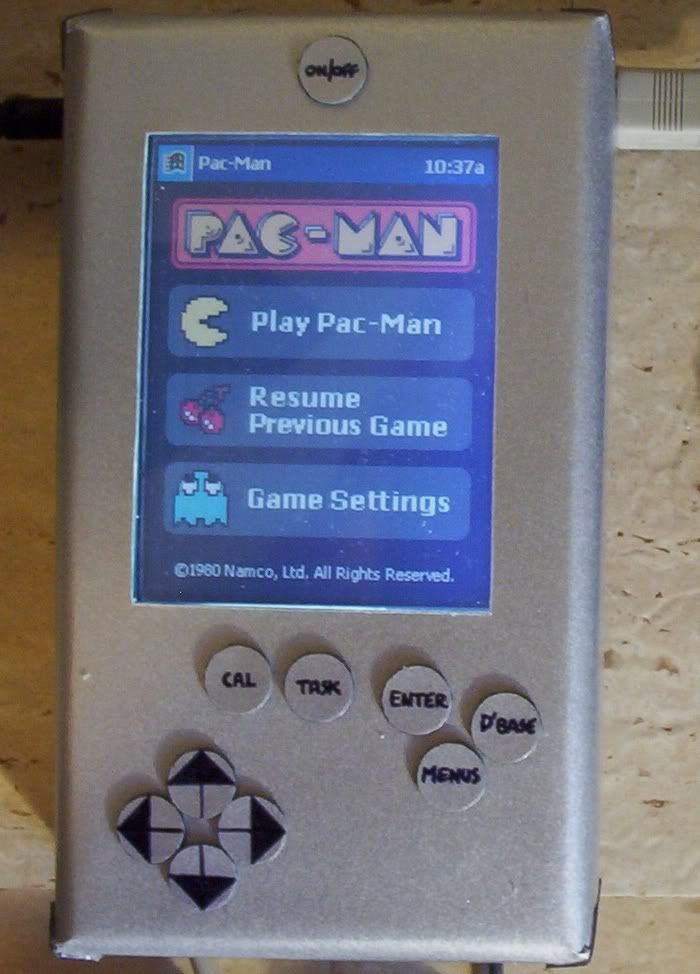

Pic of a game (I had been playing it prior to this photo).


This is where I have located the PDA, next to my monitor. Nice.

benol
Posts: 1371
Joined: Thu Aug 31, 2006 1:53 pm
Location: In ur fourmz, postin in ur thredz!
Contact:

Post by benol »

bacteria wrote:This is where I have located the PDA, next to my monitor. Nice.

It matches everything!
PM me for DS friend codes. PLEASE!
DOLGAT IS REAL!!!!

Help My MyMiniCity, plzkthxbai
Skyone
Moderator
Posts: 6390
Joined: Tue Nov 29, 2005 8:35 pm
Location: it is a mystery
Contact:

Post by Skyone »

Ahh!! Rolly mice!! :P I hate those things.

Looks great with Pac-Man loaded up!
bacteria
Portablizer Extraordinaire
Posts: 3984
Joined: Fri Apr 20, 2007 12:14 am
Location: Hampshire, UK
Contact:

Post by bacteria »

I like "rolly mice" as they don't take much desk space. It takes days (literally) to get used to them, but when you do, they are great.

I have a switcher box so I can use the same monitor and keyboard for the two main computers I have (one for gaming and the other for internet), however for some reason the switch box isn't reliable with one mouse only, so hence I have to use two.

The white mouse I use for internet, cost 80p (about $1.55) at a car boot sale, works great

Yes, Pacman looks nice, pic is a bit washed out though. I made the outser shell of the PDA silver to mimic the Ipaq colour, as you say benol, it matches the monitor and other mouse nicely!
