Prototype Atari PCB made!

vb_master · Post by **vb_master** » Sun May 01, 2005 6:21 am

Gannon, how much? Can you supply us with a Gerber file / company you used?

Post by **SpongeBuell** » Sun May 01, 2005 11:09 am

I know he paid $20 for the board, at least that's what he told me.

As for the chips, it's TIA (which is the technical term for the Stella) 6507, and RIOT.

Alchemist · Post by **Alchemist** » Sun May 01, 2005 1:39 pm

Really nice work, where did you get the board fabbed? $20 is very cheap.

Post by **gannon** » Sun May 01, 2005 2:19 pm

http://www.sparkfun.com/
$2.50 a square inch

maddox · Post by **maddox** » Sun May 01, 2005 2:52 pm

no pictures.
where are they ?

HK-47 · Post by **HK-47** » Sun May 01, 2005 2:55 pm

His first post...

Post by **gannon** » Sun May 01, 2005 3:05 pm

Maybe he has the PoD bug :'(

Post by **bicostp** » Sun May 01, 2005 3:13 pm

So... gannon.tk redirects to a PoD sub-name (or whatever it's called)? I thought it's a 100freewebs site. That's what mine is. Let's hear it for free stuff!

\/ My new sig sticks out like a sore thumb.

maddox · Post by **maddox** » Sun May 01, 2005 3:19 pm

still geting a timeout.

what is the PoD bug ??

Post by **gannon** » Sun May 01, 2005 3:19 pm

bicostp wrote:So... gannon.tk redirects to PoD?|

No, gannon.tk and PoD are on the same server. There's a routing issue with the server and not all people can access it.

maddox · Post by **maddox** » Sun May 01, 2005 3:22 pm

i wanna see the pictures too

HK-47 · Post by **HK-47** » Sun May 01, 2005 3:24 pm

maddox · Post by **maddox** » Sun May 01, 2005 3:26 pm

@ HK-47

big, big thank you !

EDIT

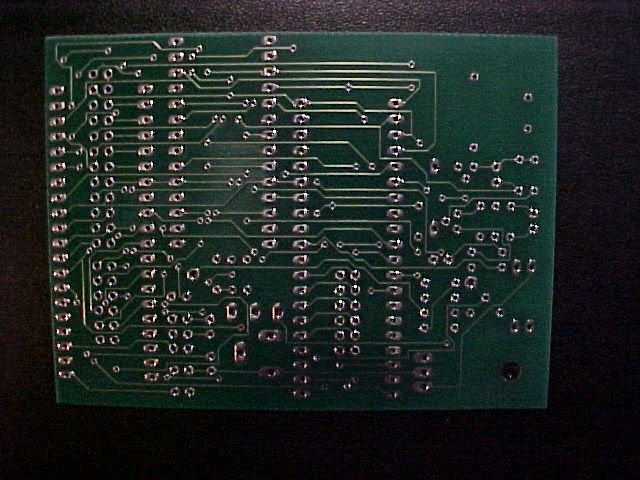

real nice PCB.
with which programm is it designed ?

Post by **gannon** » Sun May 01, 2005 3:34 pm

I used Eagle for it

maddox · Post by **maddox** » Sun May 01, 2005 4:17 pm

cool i know Eagle, nice programm, but i little bit hard to handle for me

could you please post the partslist ? that would be very nice.
