Completed desktop PSU.

themadhacker · Post by **themadhacker** » Sat Dec 27, 2008 8:17 pm

Ok, I collect crashed computers and save the parts from them. I got a PSU from one, and decided to make a desktop PSU with it. Due to the small size of the PSU's case, everything is crammed in. Because of this, I had to mount the fan on the outside instead of being inside, taking up space. For the Plugs, I used old A/V plugs, and the power switch is...get this...from another computer PSU. To get the 8 volts, I used a 7808 regulator from a dead circuit board.

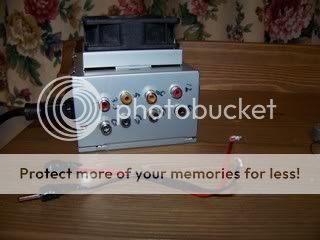

From left to right: 3.3v, 5v, 8v, 12v. The bottom row is all ground.

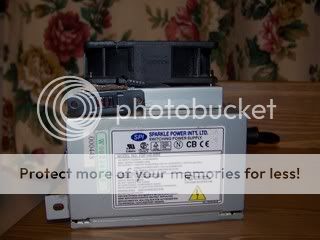

The side with the power switch.

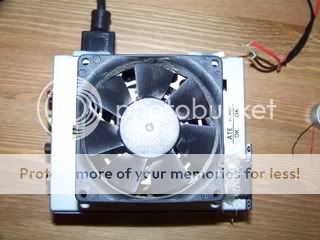

The fan mounted outside the case.

jjhammerstein · Post by **jjhammerstein** » Sat Dec 27, 2008 8:24 pm

Oh, badass.Why no 9v?
That's kind of... standard in everything.

themadhacker · Post by **themadhacker** » Sat Dec 27, 2008 8:26 pm

jjhammerstein wrote:Oh, badass.Why no 9v?
That's kind of... standard in everything.

Because 8 volts is close enough to 9, and due to the vey limited space, there was not enough room for two more plugs.

jjhammerstein · Post by **jjhammerstein** » Sat Dec 27, 2008 8:31 pm

You should put it in a bigger box.

themadhacker · Post by **themadhacker** » Sat Dec 27, 2008 8:34 pm

But I am a cheap ass, and re-use things. Also, If I want, I can put a 9 volt regulator to the wires that go into the plugs. I could do that, and just plug it into the 12v plug, and get an output of 9v.

jjhammerstein · Post by **jjhammerstein** » Sat Dec 27, 2008 8:36 pm

How hot does it get?

themadhacker · Post by **themadhacker** » Sat Dec 27, 2008 8:38 pm

Not very. There are holes on one side of the case which the air from the fan can circulate through.

Aguiluz · Post by **Aguiluz** » Sat Dec 27, 2008 10:56 pm

Are those RCA jack outlets?

Post by **Triton** » Sat Dec 27, 2008 11:58 pm

ground is common, you could have just used 4 RCA plugs

Neildo_64 · Post by **Neildo_64** » Sun Dec 28, 2008 12:59 am

It would look a lot nicer if the holes were lined up and like triton said, you only need one ground plug.

Kyo · Post by **Kyo** » Sun Dec 28, 2008 3:26 am

I made one of an old PC PSU too! But that plug idea is badass. I think I'll incorporate that into mine.

What I did is also add two usb plugs for USB devices, you might want to do that too. Just a suggestion

themadhacker · Post by **themadhacker** » Sun Dec 28, 2008 8:12 am

Triton wrote:ground is common, you could have just used 4 RCA plugs

I know, but with more ground plugs, I don't need to make a stretch with the wires I plug into them.

Tibia · Post by **Tibia** » Thu Jan 01, 2009 12:29 pm

When you did this, how did you remove the unneeded connections? Did you desolder them completely, or just cut the wires as close to the board as you could? Did you insulate them at all?
